Electric motorisation kit, P4-S-AC-EN 48V

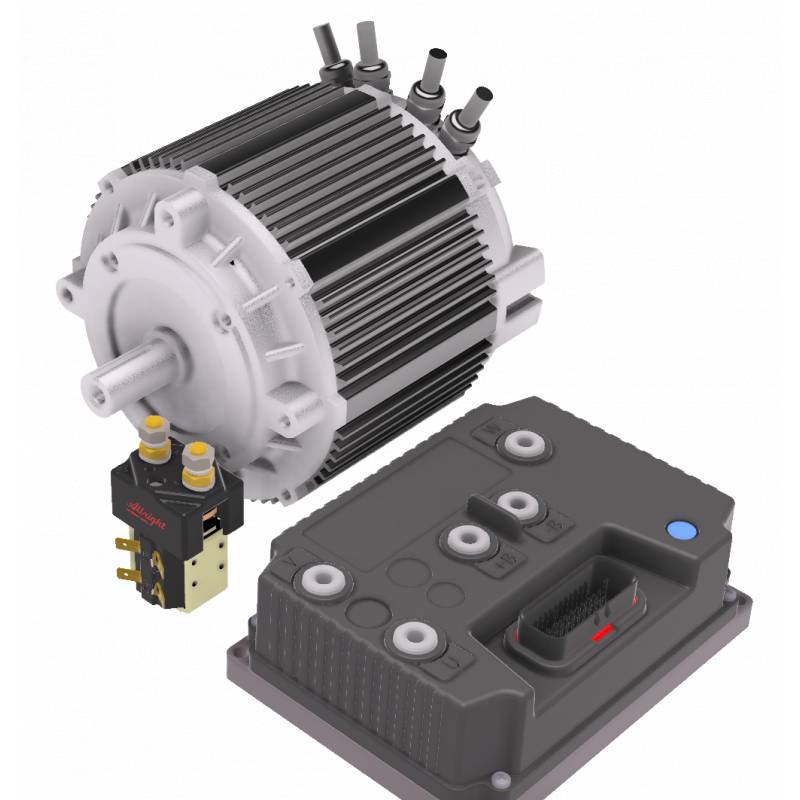

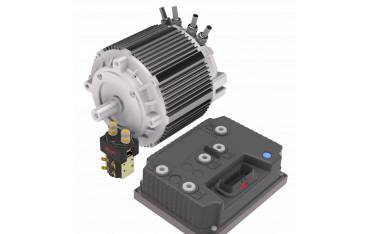

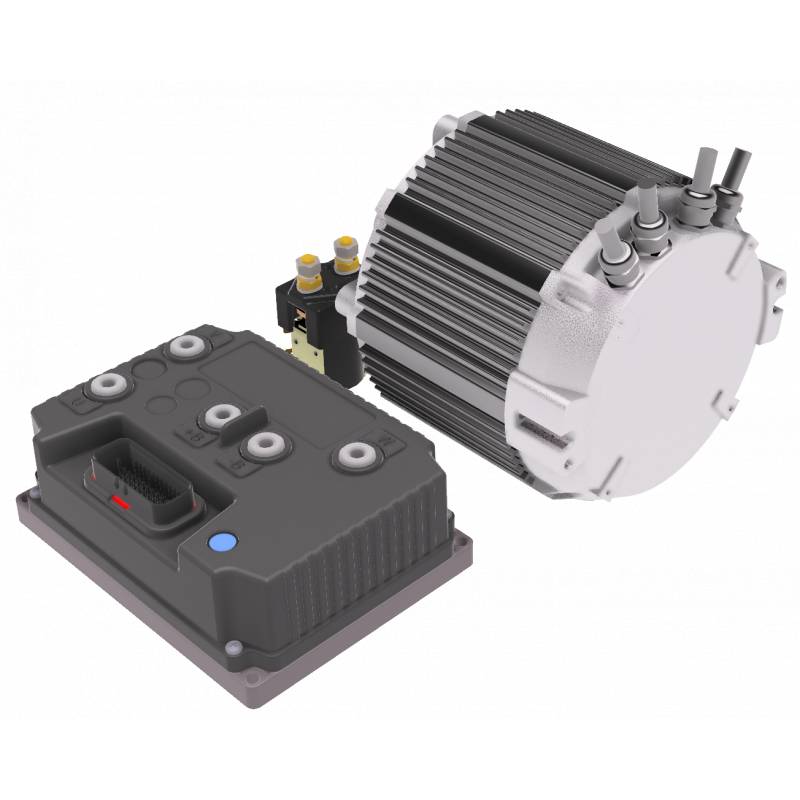

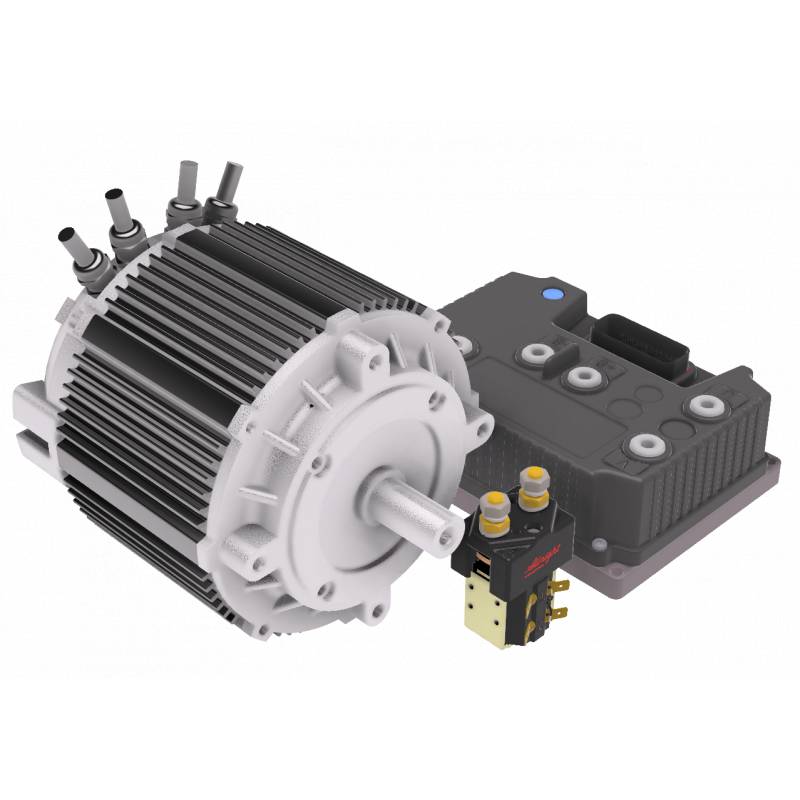

This P4-S-AC-EN 48V electric conversion kit contain:

- 1 * Motenergy ME1718 4kW PMSM brushless motor
- 1 * ZAPI BLE-X PW 48V 210A controller with preset
- 1 * Harness for Zapi PMX controller
- 1 * Curtis PB6 type 4 wire thottle box
- 1 * Line contactor SW80 100A
- 2 * Meters of 25mm² orange cable + batteries lugs + orange lugs cover
- 3 * Meters of 25mm² orange cable + controller lugs + orange lugs cover

Technical description of P4-S-AC-EN 48V karting electric conversion kit :

- Rated voltage : 48V
- Working voltage : 41V to 57V
- Rated current : 100Arms
- Maximum current : 210Arms
- Rated power : 4kW
- Maximum power : 8kW
- Rated torque : 11Nm
- Maximum torque : 30Nm
- Maximum rotation speed : 32000tr/min
- Complet set weight : 20kg
- Working température : -20°C à 50°C

Rated performance are given for pre-settled controller.
For maximum announced performance, a controller program rework is needed, contact us.

Kit typical use :

This lot of equipment can be used for light vehicle conversion into electric (karting, quad, motorcycle), industrial machine, TP, street furniture, agricultural, handling, trolley, golf, cart.

In case of nautical / marine applications, consult us before placing an order.

Recommanded batteries for P4-S-AC-EN 48V AC kit

:

- Powerbrick 48V 32AH

- Powerbrick 48V 105AH

- Pack batterie Pb 48V 38Ah

- Pack batterie Pb 48V 48Ah

- EVEA LiFe 48V 100Ah
