Karting electric conversion kit, P6 48V AC

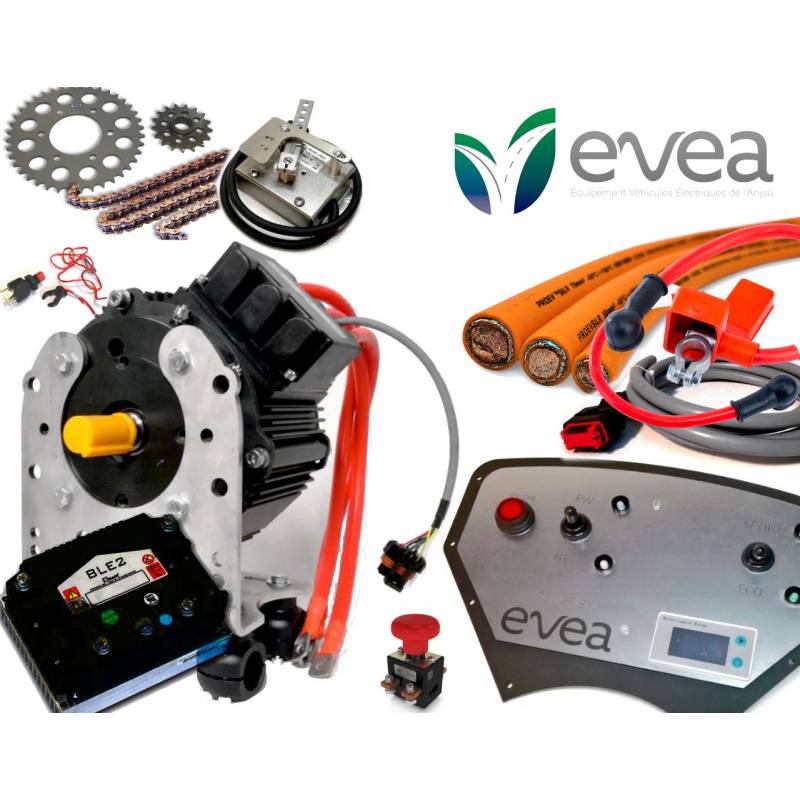

This P6 48V AC karting electric conversion kit contain:

- 1 * Motenergy ME1115 6kW PMSM brushless motor
- 1 * ZAPI BLE-2 PW 48V 500A controller with preset
- 1 * Harness for Zapi BLE-2 controller
- 1 * Curtis PB6 type 4 wire thottle box
- 1 * Albright SD300 emergency stop
- 1 * Fork circuit cutter
- 2 * Meters of 50mm² orange cable + batteries lugs + orange lugs cover
- 3 * Meters of 50m² orange cable + controller lugs + orange lugs cover
- 1 * Complet transmission chaine 1:3 for 30mm shaft (other diam. available)
- 1 * Karting dash board with battery state of charge indicator
- 1 * Moternergy karting mounting bracket (chassis tube 30mm)
- Thermal heatshrink, hose clamp, ATO fuse holder, assembly instruction included.

We can crimp lugs on power cable, cut to measure, ask us.

Technical description of P6 48V AC karting electric conversion kit :

- Rated voltage : 48V
- Working voltage : 26V to 57V
- Rated current : 150Arms
- Maximum current : 420Arms
- Rated power : 6kW
- Maximum power : 16kW
- Rated torque : 20Nm
- Maximum torque : 60Nm
- Maximum rotation speed : 4000tr/min
- Complet set weight : 36kg
- Working température : -20°C à 50°C

Rated performance are given for pre-settled controller.
For maximum announced performance, a controller program rework is needed, contact us.

Kit typical use :

This lot of equipment can be used for light vehicle conversion into electric (karting, quad, motorcycle), industrial machine, TP, street furniture, agricultural, handling, trolley, golf, cart.

In case of nautical / marine applications, consult us before placing an order.
