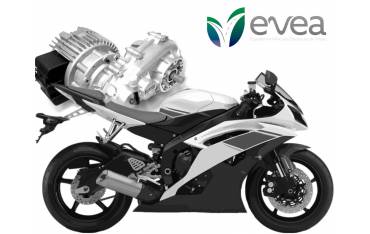

Motorcycle 250cc conversion kit, P14+ 96V AC

This P14+ 96V AC 250CC motorcycle electric conversion kit contains :

- 1 * Motenergy ME1616 14kW PMSM brushless motor
- 1 * ZAPI BLE-4 96V 500A controller with preset
- 1 * Harness for Zapi BLE-4 controller
- 1 * Hall effect twist thottle + handlebar
- 1 * Emergency stop button + main contactor relay 200A
- 1 * Fork circuit cutter
- 2 * Meters of 50mm² orange cable + batteries lugs + orange lugs cover
- 1 * Dash board with battery state of charge indicator
- 1 * 428er chain 13 tooth sprocket + 428er chain (lenght 3m)
- 1 * Moternergy mounting plate, iron 6mm made
- 1 * Slim liquid cooling radiator + mounting set + 19mm hoses
- 1 * Electrical 12V water pump + 96V-12V voltage converter
- Thermal heatshrink, hose clamp et 6mm support, assembly instruction included.

We can crimp lugs on power cable, cut to measure, ask us.

Technical description of P14+ 96V AC 250CC motorcycle electric conversion kit :

- Rated voltage : 96V
- Working voltage :70V à 115V
- Rated current : 250Arms
- Maximum current : 500Arms
- Rated power : 14kW
- Maximum power : 35kW
- Rated torque : 50Nm
- Maximum torque : 100Nm
- Maximum rotation speed : 4000tr/min
- Complet set weight : 40kg
- Working température : -20°C à 50°C

Rated performance are given for pre-settled controller.

Kit typical use :

This lot of equipment allows the conversion of 2 light wheels into electric (250cc or 400cc motorcycle). It may also be suitable for other applications, consult us before placing an order.
