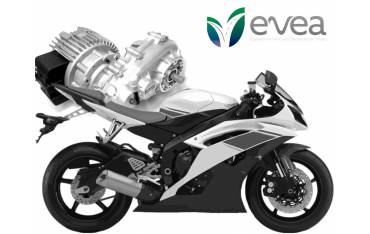

Motorcycle 125cc conversion kit, P12 72V AC

This P12 72V AC 125CC motorcycle electric conversion kit contains :

- 1 * Motenergy ME1507 12kW PMSM brushless motor
- 1 * ZAPI BLE-3 PW 72V 550A controller with preset
- 1 * Harness for Zapi BLE-3 controller
- 1 * Hall effect twist thottle + handlebar
- 1 * Emergency stop button + main contactor relay 200A
- 1 * Fork circuit cutter
- 2 * Meters of 50mm² orange cable + batteries lugs + orange lugs cover
- 1 * Dash board with speedometer and battery state of charge indicator
- 1 * 428er chain 13 tooth sprocket + 428er chain (lenght 3m)
- 1 * Moternergy mounting plate, iron 6mm made
- Thermal heatshrink, hose clamp et 6mm support, assembly instruction included.

We can crimp lugs on power cable, cut to measure, ask us.

Technical description of P12 72V AC 125CC motorcycle electric conversion kit :

- Rated voltage : 72V
- Working voltage :50V à 90V
- Rated current : 150Arms
- Maximum current : 550Arms
- Rated power : 12kW
- Maximum power : 22kW
- Rated torque : 30Nm
- Maximum torque : 100Nm
- Maximum rotation speed : 3000tr/min
- Complet set weight : 38kg
- Working température : -20°C à 50°C

Rated performance are given for pre-settled controller.

Kit typical use :

This lot of equipment allows the conversion of 2 light wheels into electric (80cc or 125cc motorcycle). It may also be suitable for other applications, consult us before placing an order.
