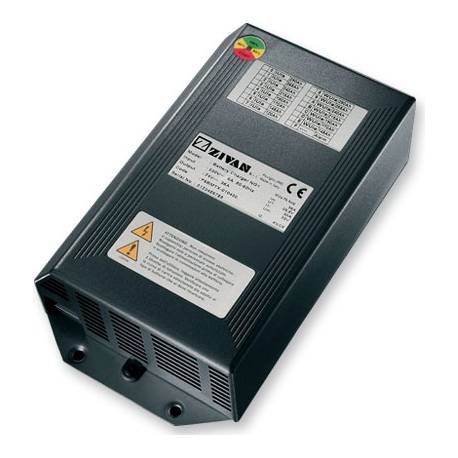

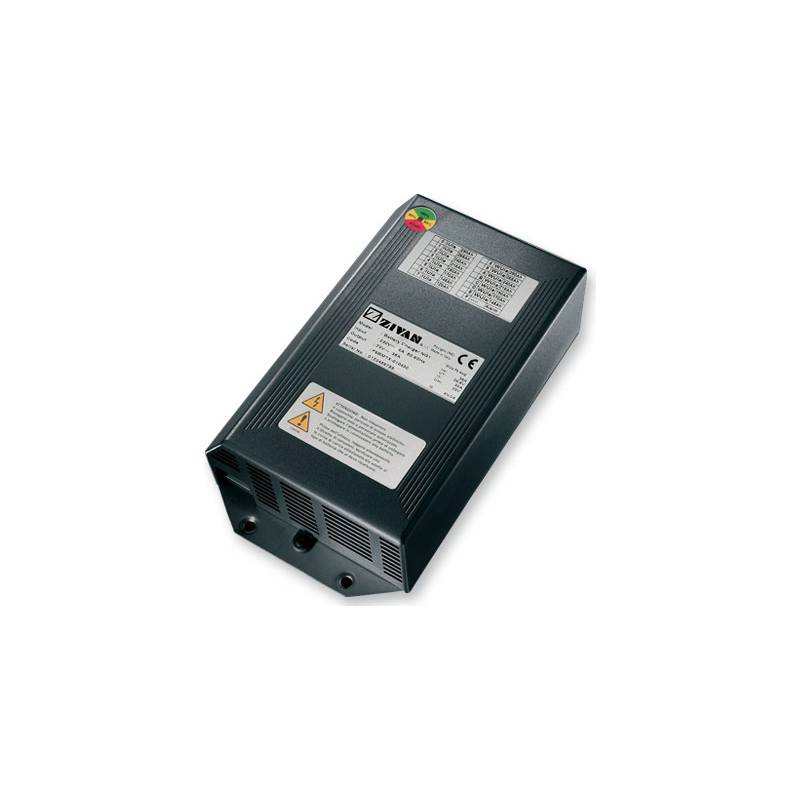

ZIVAN NG1 48V 25A Lead/Lithium battery charger
New product
495,72 €
- Input voltage: 115VAC/230VAC - 50Hz/60Hz
- Output voltage: 48V
- Output charging current: 25A
- Efficiency: > 85 %
- Operating temperature: from –20 to + 50 °C
- Output short-circuit protection (fuse)
- Inverse polarity protection (fuse)

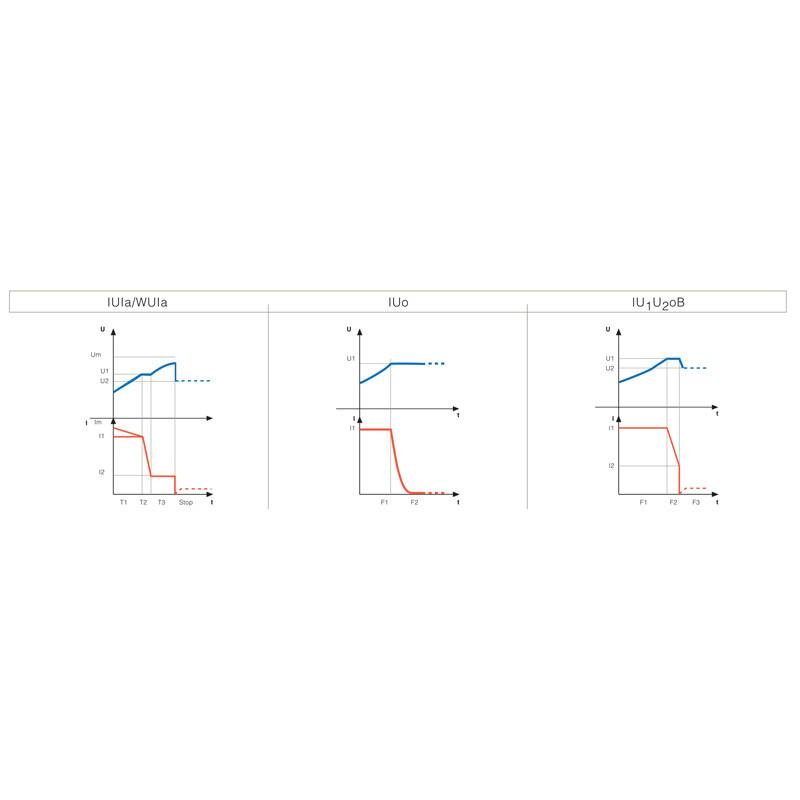

- Charging curve: programmable
- Auxiliary end of charge contacts
- Acoustic alarm
- Case: Metal base, cover in self-extinguishable ABS

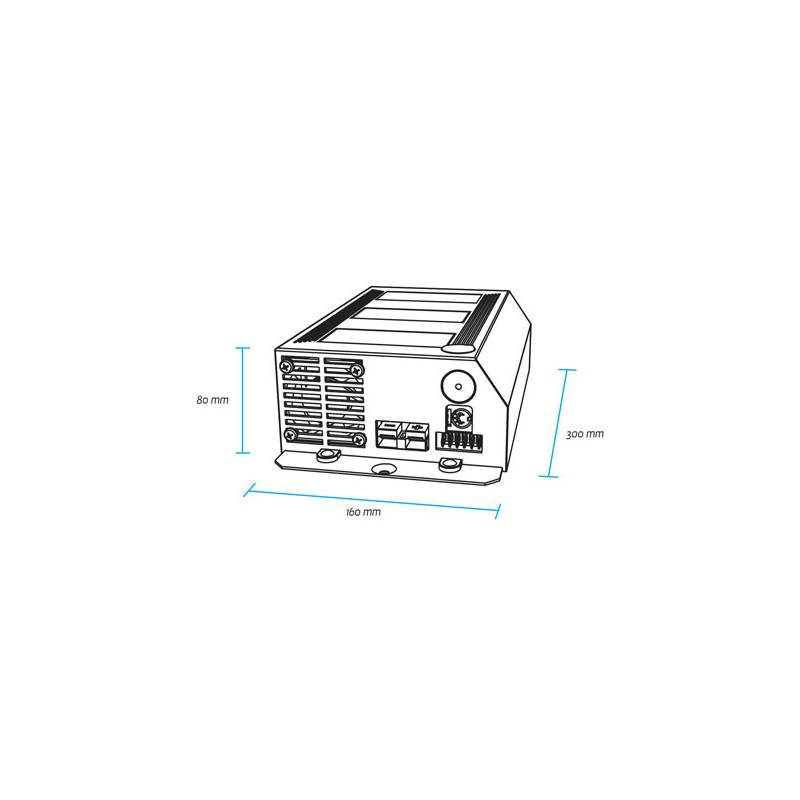

- Size: 300 x 160 x 80 mm
- Weight: 2,2 kg
- Enclosure class: IP20
- Use for lead (AGM/Gel/Liquid acid) or lithium (all chimisteries) battery, select charger option.
- Conformity with Directive 73/23/EEC and EMC 89/336/EEC
The Single-phase battery charger ZIVAN NG1 48V 25A is an innovative device with extraordinary versatility, reliability and efficiency. Different software may be installed in order to change the charging features and to adapt them to every kind of battery. The reduced size of this model allows both installation on a wall, and vehicle on-board. Consequently the battery can be recharged from any available outlet, without driving the machine to a specific charging area.
Zivan ref : GGELCB-07000X
3D VIEW
No customer reviews for the moment.
| Combinations | reference | Price | quantity |
Charger type selection : Lead charg. - master - CB/Cu1 410-120 Price : 495,72 € | 410-120 | 495,72 € |   |
Charger type selection : Lithium charg. - master - CB/Cu3 410-120 Price : 545,72 € | 410-120 | 545,72 € | |
Charger type selection : Lithium charg. - CAN slave - RE 410-120 Price : 545,72 € | 410-120 | 545,72 € | |
