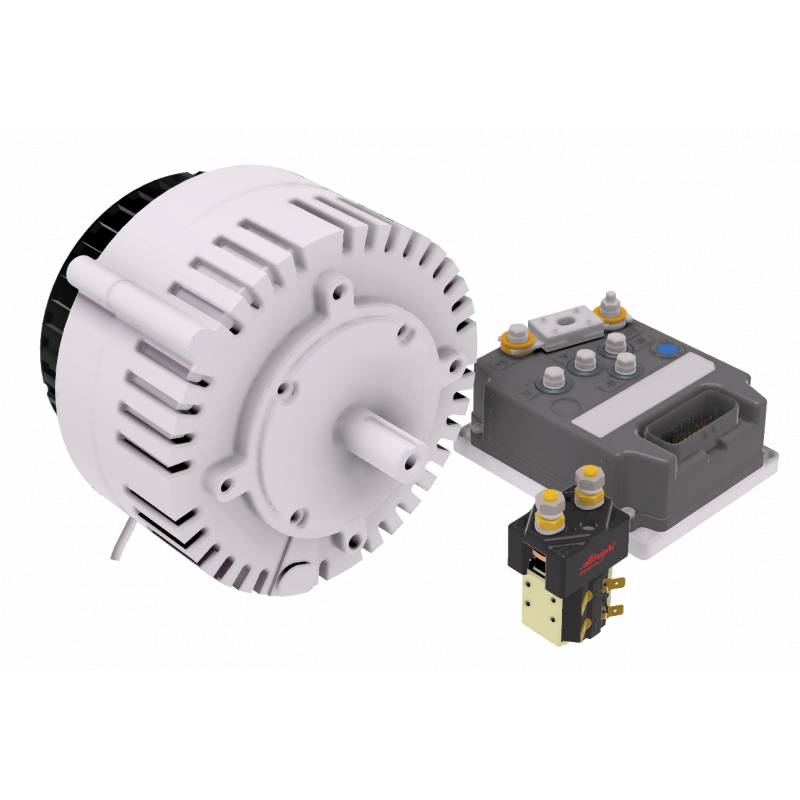

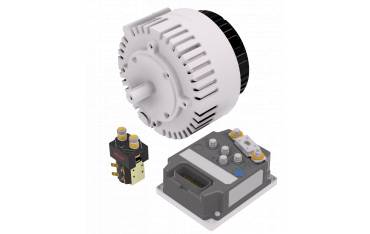

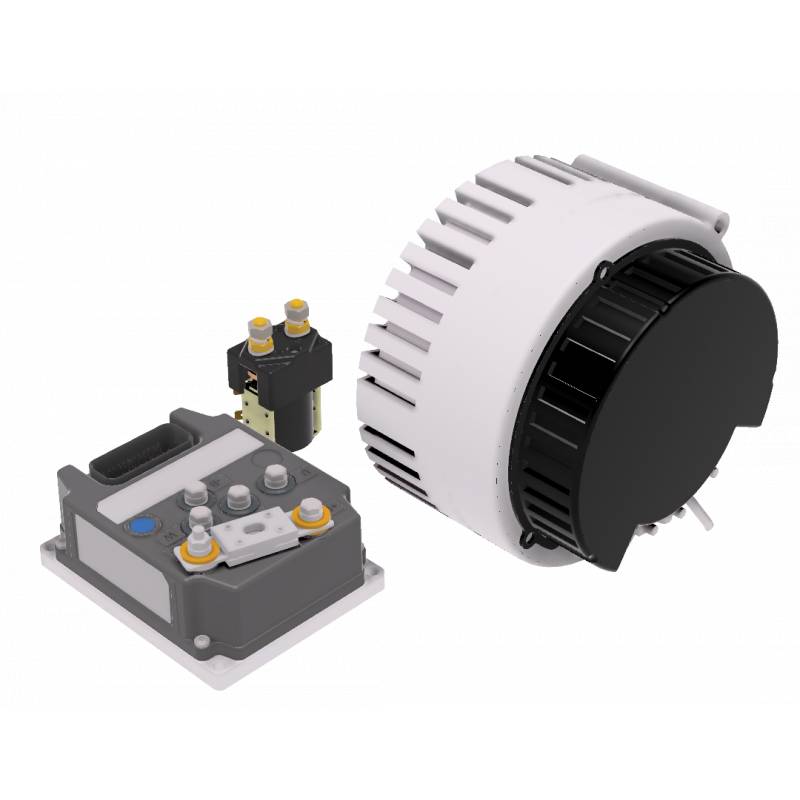

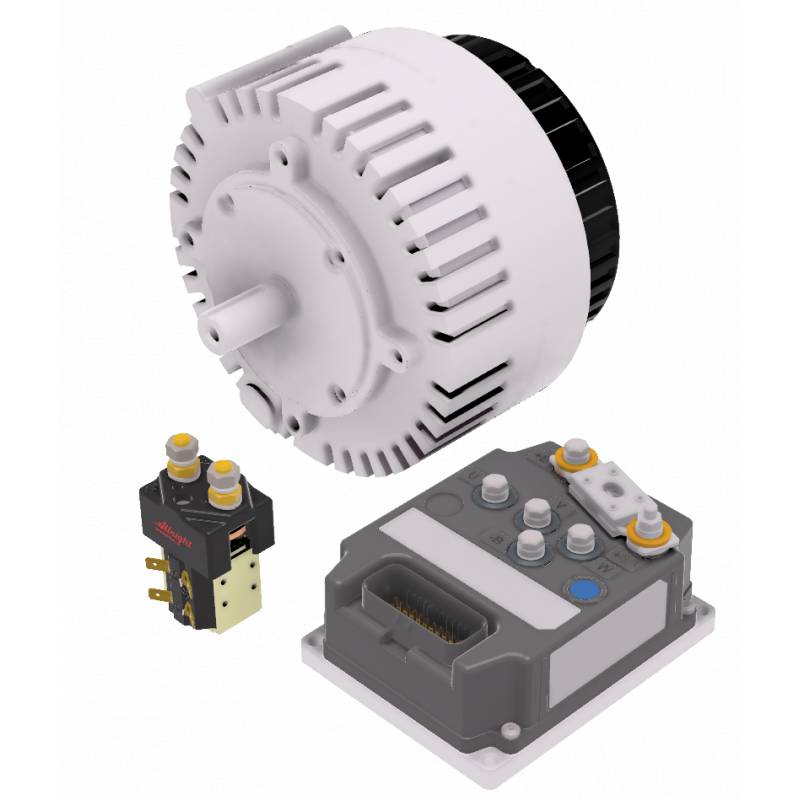

Electric motorisation kit, P2-S-AC 24V

This P2-S-AC 24V electric conversion kit contain:

- 1 * Motenergy ME0909 4kW PMSM brushless motor
- 1 * ZAPI BLE-X PW 24V 165A controller with preset
- 1 * Harness for Zapi BLE-X controller
- 1 * Curtis PB6 type 4 wire thottle box
- 1 * Line contactor SW80 100A
- 2 * Meters of 16mm² orange cable + batteries lugs + orange lugs cover
- 3 * Meters of 16mm² orange cable + controller lugs + orange lugs cover

Technical description of P2-S-AC 24V electric conversion kit :

- Rated voltage : 24V
- Working voltage : 20V to 30V
- Rated current : 80Arms
- Maximum current : 165Arms
- Rated power : 2kW
- Maximum power : 4kW
- Rated torque : 10Nm
- Maximum torque : 21Nm
- Maximum rotation speed : 2000tr/min
- Complet set weight : 17kg
- Working température : -20°C à 50°C

Rated performance are given for pre-settled controller.
For maximum announced performance, a controller program rework is needed, contact us.

Kit typical use :

This lot of equipment can be used for light vehicle conversion into electric (karting, quad, motorcycle), industrial machine, TP, street furniture, agricultural, handling, trolley, golf, cart.

In case of nautical / marine applications, consult us before placing an order.

Recommanded batteries for P2-S-AC 24V AC kit

:

- Powerbrick 24V 32AH

- Powerbrick 24V 150AH

- Pack batterie Pb 24V 38Ah

- Pack batterie Pb 24V 48Ah

- EVEA LiFe 24V 200Ah
