Sale!

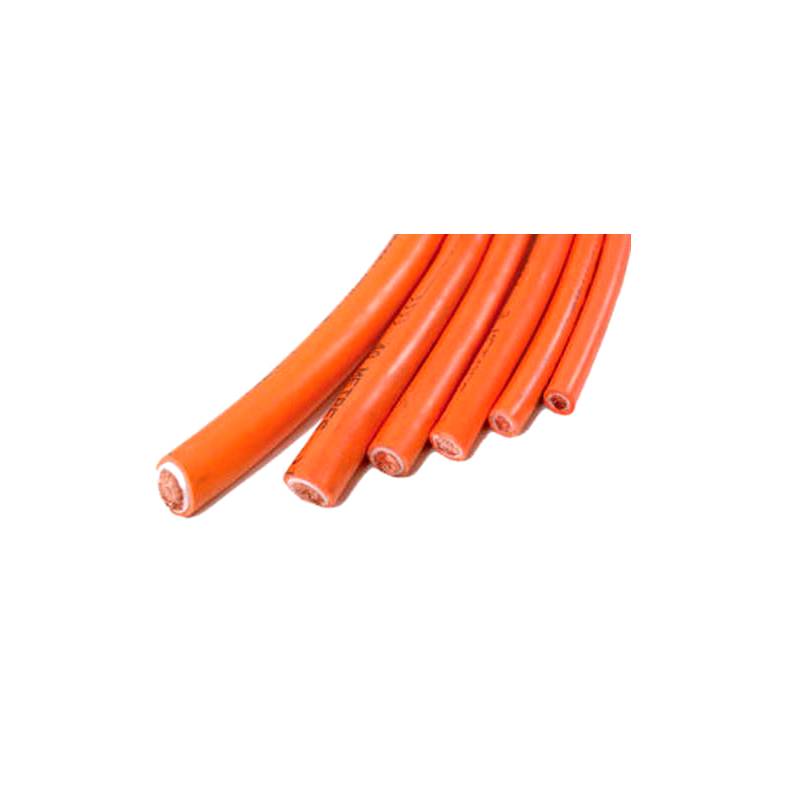

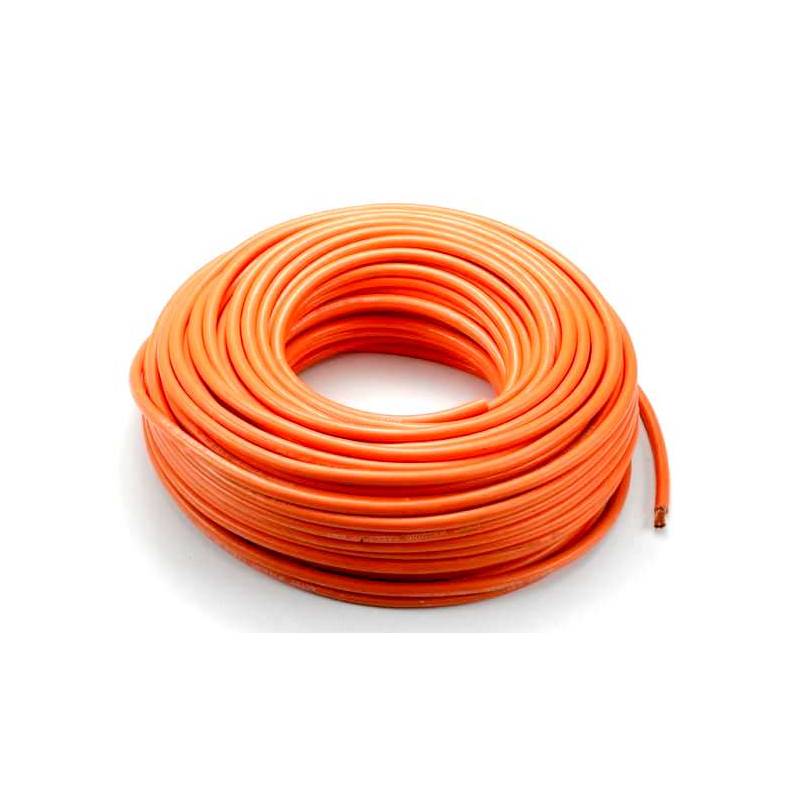

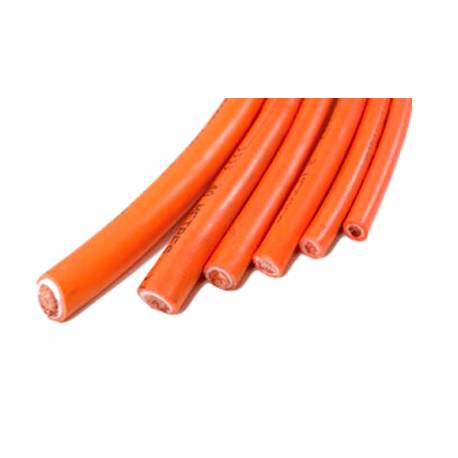

Orange flexible multistrand cable 450V/750V
Previous Next

Orange flexible multistrand cable 450V/750V

New product

4,21 €

  • ORANGE flexible electric cable sold per meter, comply  EVs
  • Orange color multistrand cable
  • Sold by meter (not cut if more than one meter ordered)

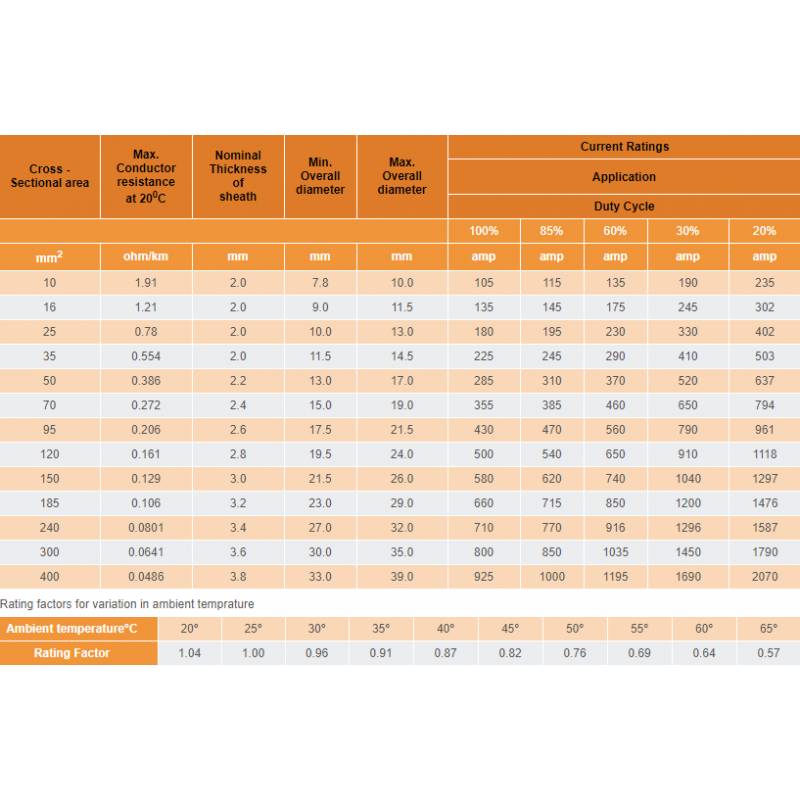

  • Cable available in the following sections : : 10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm²
  • Standard CE and IEC 245-6
  • Operating voltage 450VDC / 750VAC
  • Operating temperature -40°C to 70°C

Orange color multistrand cable

Sold by meter

Comply  EVs use
Cable available in the following sections :
  • 10mm²
  • 16mm²
  • 25mm²
  • 35mm²
  • 50mm²
  • 70mm²
  • 90mm²

No customer reviews for the moment.

Write a review

Orange flexible multistrand cable 450V/750V

Orange flexible multistrand cable 450V/750V

  • ORANGE flexible electric cable sold per meter, comply  EVs
  • Orange color multistrand cable
  • Sold by meter (not cut if more than one meter ordered)
  • Cable available in the following sections : : 10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm²
  • Standard CE and IEC 245-6
  • Operating voltage 450VDC / 750VAC
  • Operating temperature -40°C to 70°C
Quick view
Straight tubular lug eyelet Ø 6 mm
0 Review(s)
0,50 €
Add to cart
Straight copper...
Quick view
Crimp sleeve 10mm2
0 Review(s)
0,93 €
Add to cart
Copper crimp sleeve...
Quick view
Cable end insulated 10mm2 brown 12mm
0 Review(s)
0,42 €
Add to cart
Cable end insulated...
Quick view
Power cable realization package
0 Review(s)
31,32 €
Add to cart
Crimping package of 2...
Collier fixation
Quick view
Stainless steel / rubber clamp
0 Review(s)
1,62 €
Add to cart
Stainless steel /...
CombinationsreferencePricequantity

Electric cable area in mm² : 10mm2 (AWG7)

530-021-10

Price : 4,21 €

530-021-104,21 €

Electric cable area in mm² : 16mm² (AWG5)

530-021-16

Price : 5,21 €

530-021-165,21 €

Electric cable area in mm² : 25mm² (AWG3)

530-021-25

Price : 7,21 €

530-021-257,21 €

Electric cable area in mm² : 35mm² (AWG2)

530-021-35

Price : 9,71 €

530-021-359,71 €

Electric cable area in mm² : 50mm² (AWG1/0)

530-021-50

Price : 12,51 €

530-021-5012,51 €

Electric cable area in mm² : 70mm² (AWG2/0)

530-021-70

Price : 16,01 €

530-021-7016,01 €

Electric cable area in mm² : 95mm² (AWG3/0)

530-021-95

Price : 19,81 €

530-021-9519,81 €
