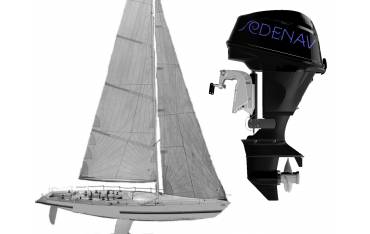

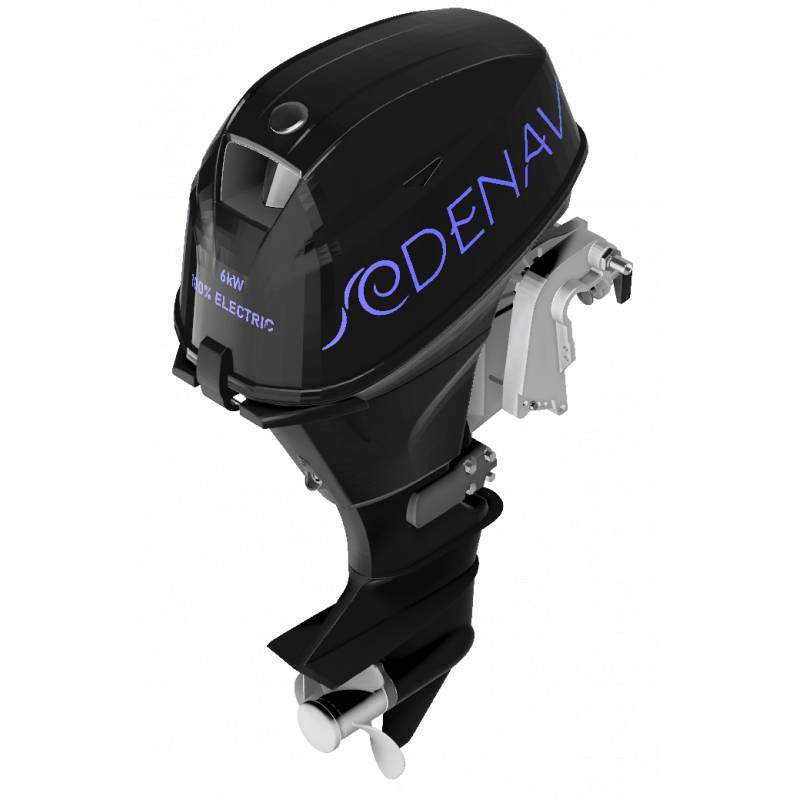

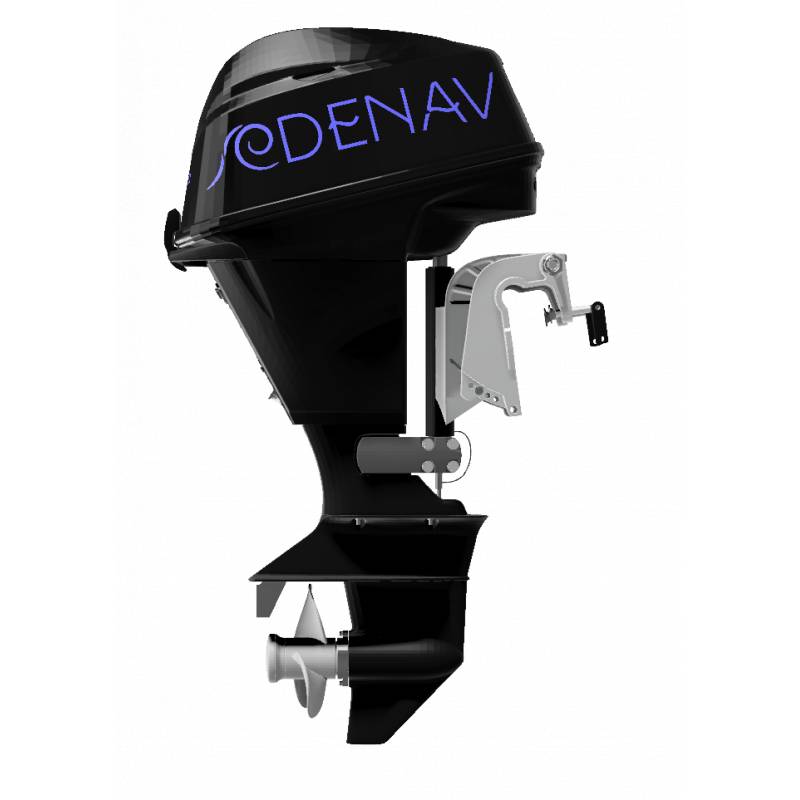

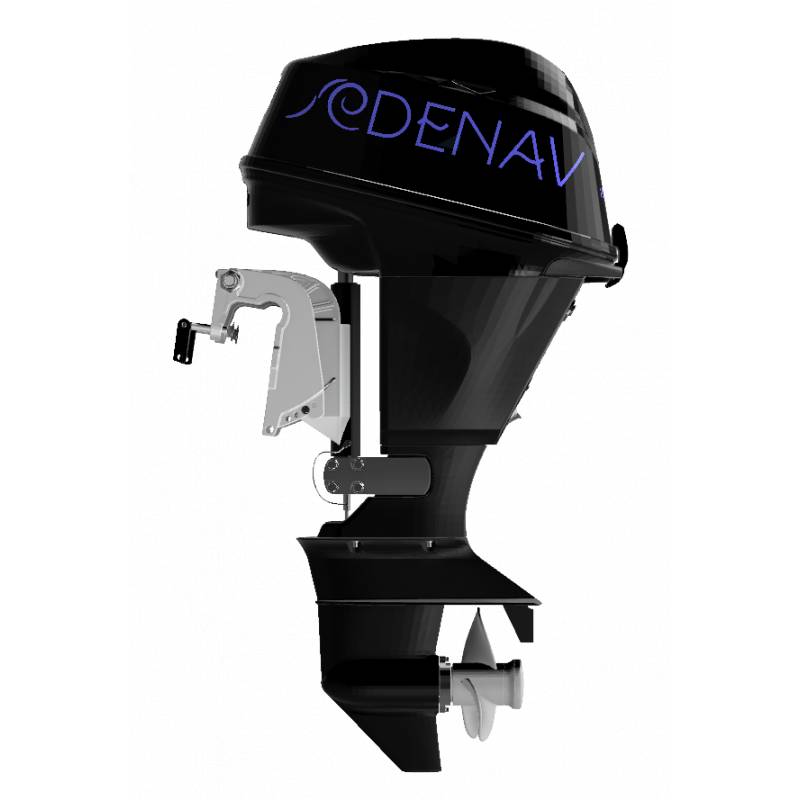

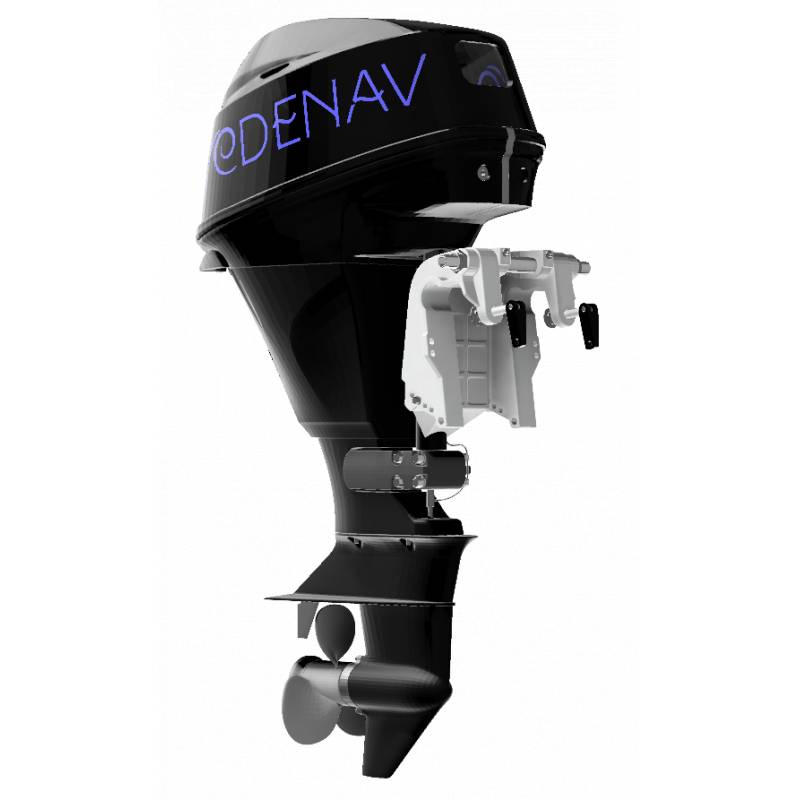

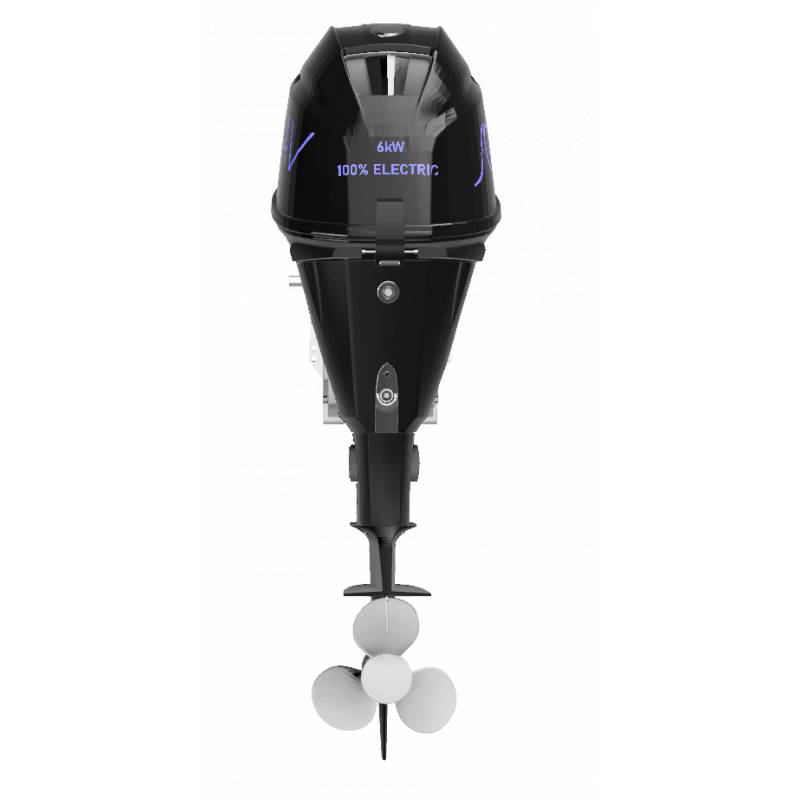

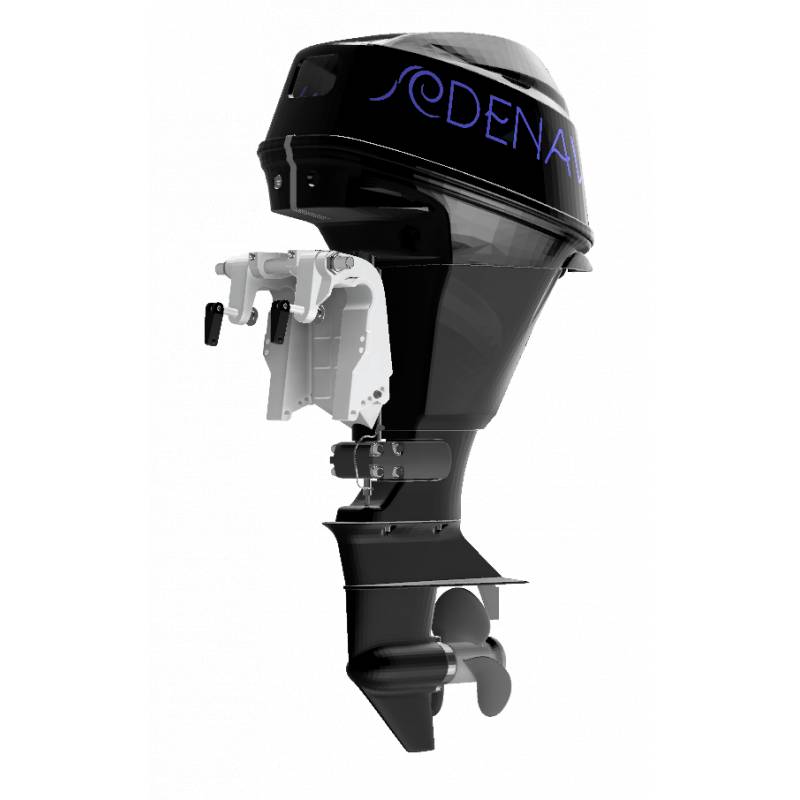

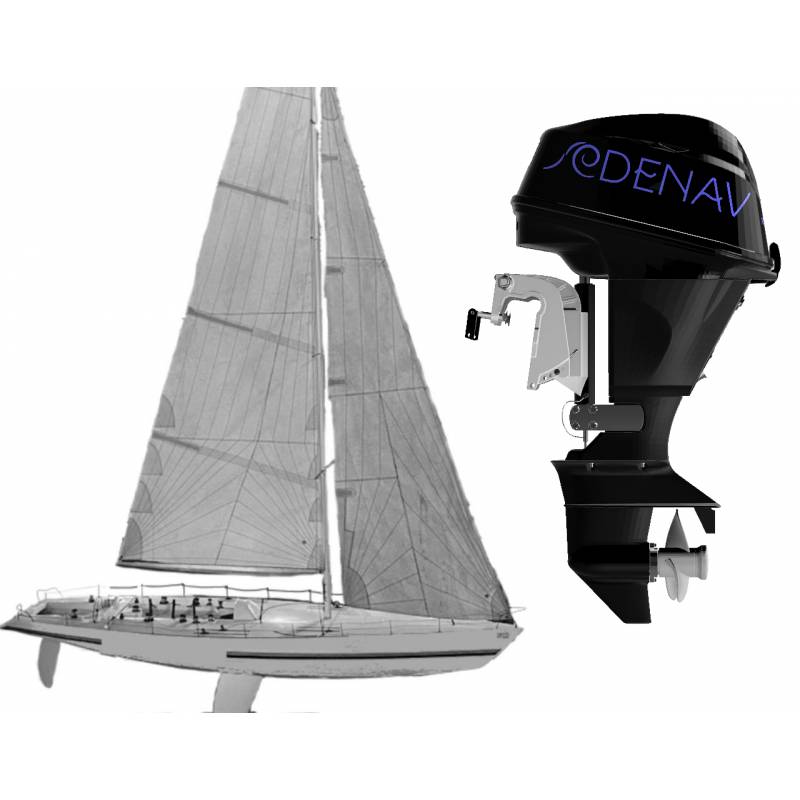

Boat electrification pack, 48V 6kW - outboard

New product

3 520,00 € Tax excluded

Livraison : 3 à 6 semaines

The pleasure craft electrification pack ( P4LC 48V 4kW ) is intended to be used when converting pleasure craft categories C - D and sailboats up to 8 meters to electric.

DescriptionValueUnit
Voltage48Vdc
Power4kW
RPM1000RPM
CoolerLiquid-
ApplicationsBoat
Sailing ship
Pleasure
-

The pleasure craft electrification pack (P4LC 48V 4kW) - Content:

CategoryDescription
Motor
Power : 4kW continuous
Sealing : Yes, nautic applications
Finishing : Aluminium powder coated, black
Cooling : Liquid

Electric

Management

PowerBox Mini : the PowerBox contains all the electrical elements necessary for motor management (controller, line contactor, fuses, voltage converter)
Program: Standard, power limit to 4kW
Cooling : Liquid
Supply
Voltage : 48V continuous (lead or lithium batteries)
Cables : 25mm², orange, 3m length

House &

Accessories

House battery charger : yes, included in PowerBox Mini. This system is designed to replace the thermal engine alternator. It is used to supply the engine cooling water pump to recharge the service batteries or to supply the instrumentation during navigation.
Voltage : 13,4V (option 26,8V)
Power : 300W
Transmission
Reduction ratio: 1:4, belt transmission (other ratios are available depending on the maximum propeller speed)
Propeller shaft speed : 1000 tr/min
Coupling : Elastic on the original propeller shaft, through taper bush or split half couplings (on request)
Support
Materials : Stainless 304 / Aluminium
Bearing : Waterproof, Dustproof
Pieds : Plots antivibratoires, réglables en hauteur (0 à +30mm)
Cooling
Liquid : Self-priming pump (option)
Flow rate : 10l/min minimum
Pressure : 4 bars maximum
Coolant : Filtered clear water, filtered sea water, glycol closed circuit with heat exchanger (recommanded)

User Interface

Option 1 : 4-way control panel (key switch, fork circuit breaker, forward / neutral / reverse switch), ref: CMD-PNL-4W: CMD-PNL-4W
This option allows the user to have a piloting station with all the controls grouped together at a remote point, for easy and quick integration into an existing piloting station.




Option 2 : 2-way control panel (key switch, fork circuit breaker) + twist throttle + remote forward / neutral / reverse switch, ref : CMD-PNL-2W-TW-SW
This option allows you to have a two-part piloting station:
a) 2-way control panel enables the motorization to be powered up using the ignition key and the fork circuit breaker
b) Forward / neutral / reverse motor rotation and throttle control by handle
This option is particularly suitable for piloting with the tiller handle thanks to the twist throttle (diam. 22mm) and to the forward / neutral / rear switch (diam. 22mm)




Option 3 : Remote control box, fully integrated and more ergonomic than option 1, ref: BOAT-THRTL-V2, see product description.




Option 4 : 2-way control panel (key switch, fork circuit breaker) + throttle unit + remote reverser unit, ref : CMD-PNL-2W-PB6-THRTL-SLCTR
This option is particularly suitable if you want to keep the original throtlle lever and  cable control. This option preserves the aesthetics of the original piloting station of the boat. Then, the movement of the two cables is transformed into electrical signals by this two boxes (throttle box & inverter control box)

The pleasure craft electrification pack (P4LC 48V 4kW) - Technical description:

The performances are given for a nominal voltage of 48Vdc.
The nominal performances are given for a controller in Standard program.

Motor characteristics

DescriptionMinimumNominalMaximumUnité
Voltage364860Vdc
Current-100100Arms
Power-44kW
Torque-1111Nm
RPM--4000RPM
Température-20+30+50°C


Transmission characteristics

DescriptionMinimumNominalMaximumUnité
Torque-4444Nm
RPM--1000RPM
Weight-35-kg



The pleasure craft electrification pack (P4LC 48V 4kW) - Typical use:

The pleasure craft electrification pack (P4LC 48V 4kW) is intended to be used when converting pleasure craft categories C - D and sailboats up to 8 meters to electric.
