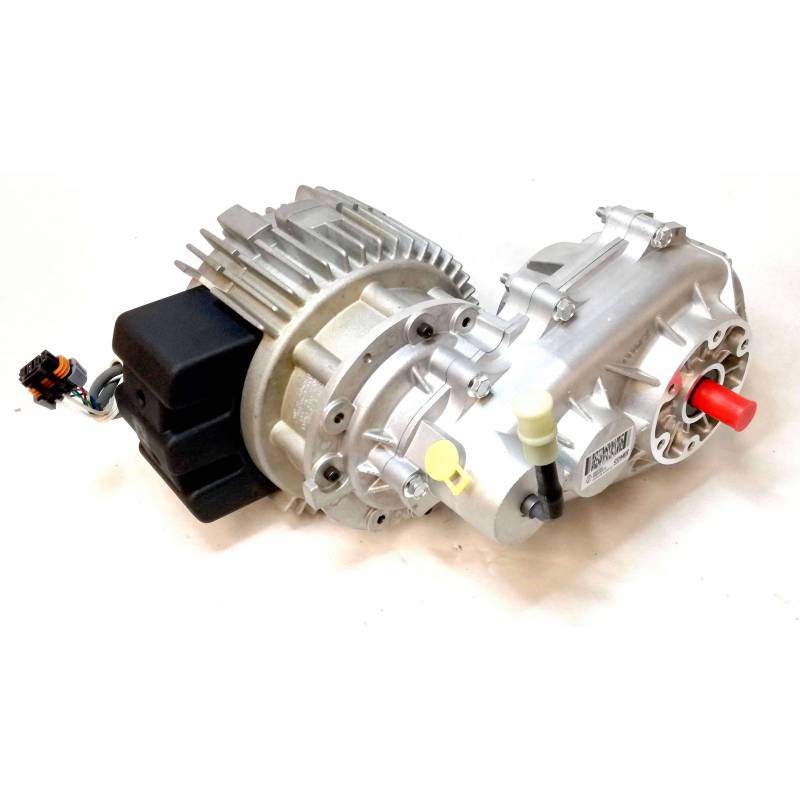

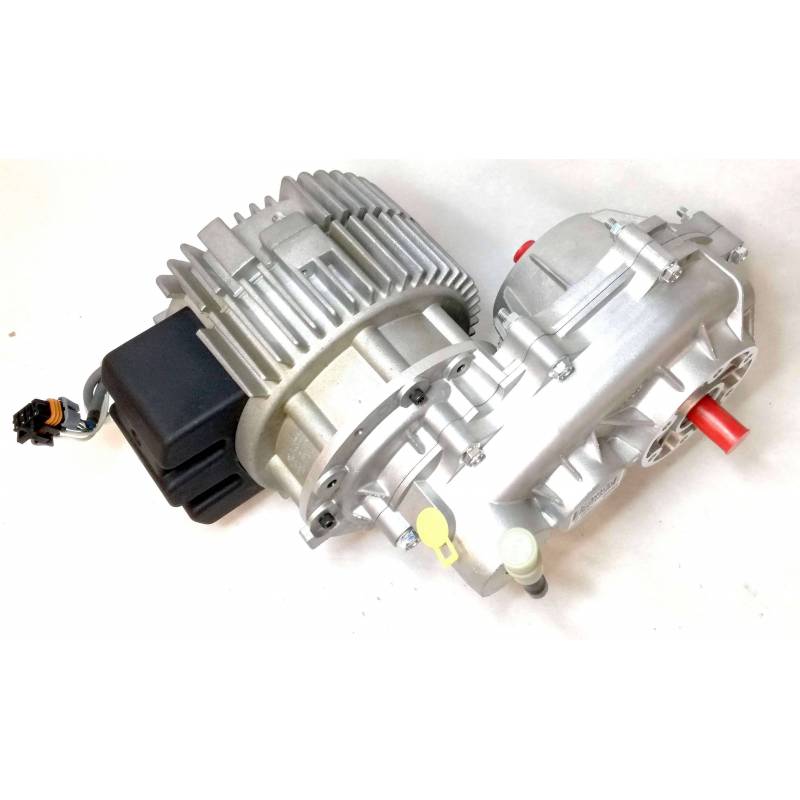

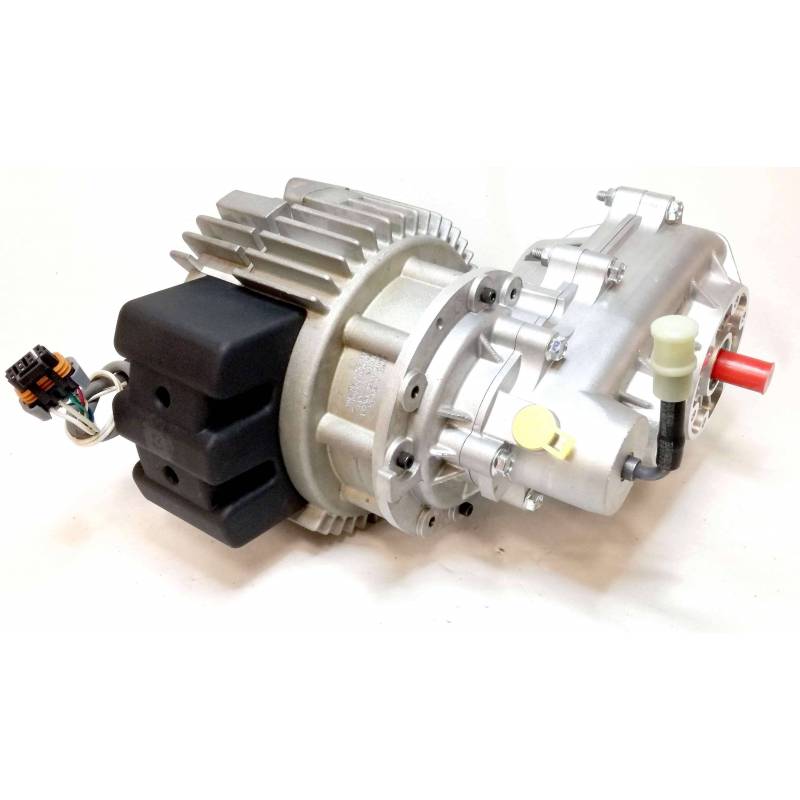

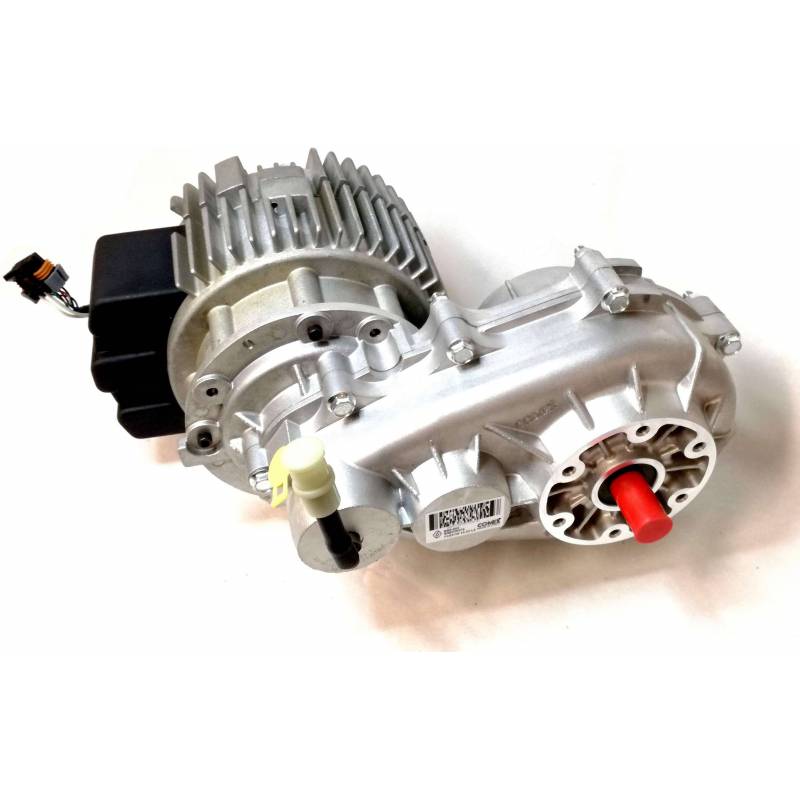

EVEA P10-13D motor / gearbox set

1000-203

New product

1 490,40 € Tax excluded

Livraison : 3 à 6 semaines

EVEA P10-13D complet drivetrain, include a 10kW (25kW max, 70Nm) electric motor + 1:13 gearbox with mechanical differencial integrated. Can be use on light electric véhicles (<1000Kg).

EVEA P10-13D complet drivetrain



Motor data :

- No brush maintenance, brushless
- Fully enclosed / Waterproof
- 3-phases, double stators, Y-connected
- Permanent Magnet Synchronus Motor
- Motor efficiency of 92% at 48 VDC.
- 4 pairs pole motor (8 magnets).
- Phase to Phase winding resistance is 0.048 Ohms.
- Phase to Phase winding inductor is 0.088 mH.
- Maximum recommended rotor speed is 5000 RPM (520 rad/s).
- Controller input voltage 24V à 72V VDC.
- Torque constant 0.15 Nm/Amp.
- Armature Inertia 45 Kg/cm²
- Rated power 10kW, peak 26kW (37hp).
- Rated current 120Arms
- Maximum current 450Arms during1 min
- Weight 18Kg
- Maximum torque 70Nm.
- Air cooling (fully enclosed), waterproof.
- Temperature sensor KTY84-130
- Rotor sensor type Sin/Cos

Reducer / gearbox:

- Reduction 1:13 ratio
- Mechanical differencial integrated
- Lubrication by oil bath
- Weight 11Kg



This powertrain comply with controllers 24V, 48V and 72/80V :

- Sevcon Gen4 4845, Gen4 8035
- Zapi BLE2 48V 400A, BLE2 80 250A, BLE3 48V 600A, BLE3 80V 450A
- Curtis 1236-53XX 48V 350A



Can be use on light weight electric vehicles (quad, golf cart, agricultural machine,  industrial machine)
