Power socket Legrand Green'up 3.2 kVA mode 2
Previous Next

Power socket Legrand Green'up 3.2 kVA mode 2

520-016

New product

117,47 € Tax excluded

Livraison : 3 à 6 semaines

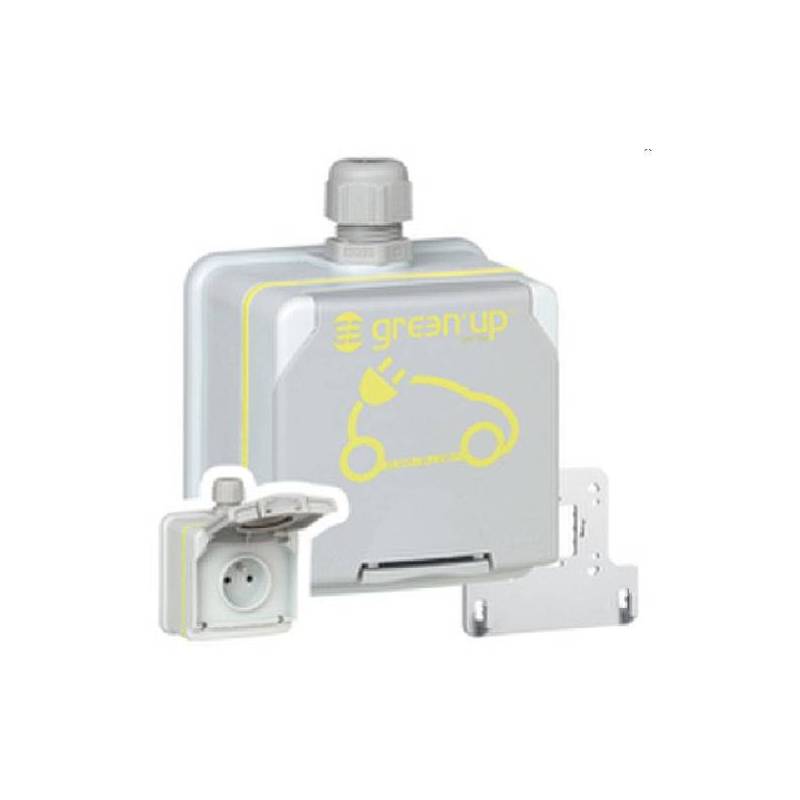

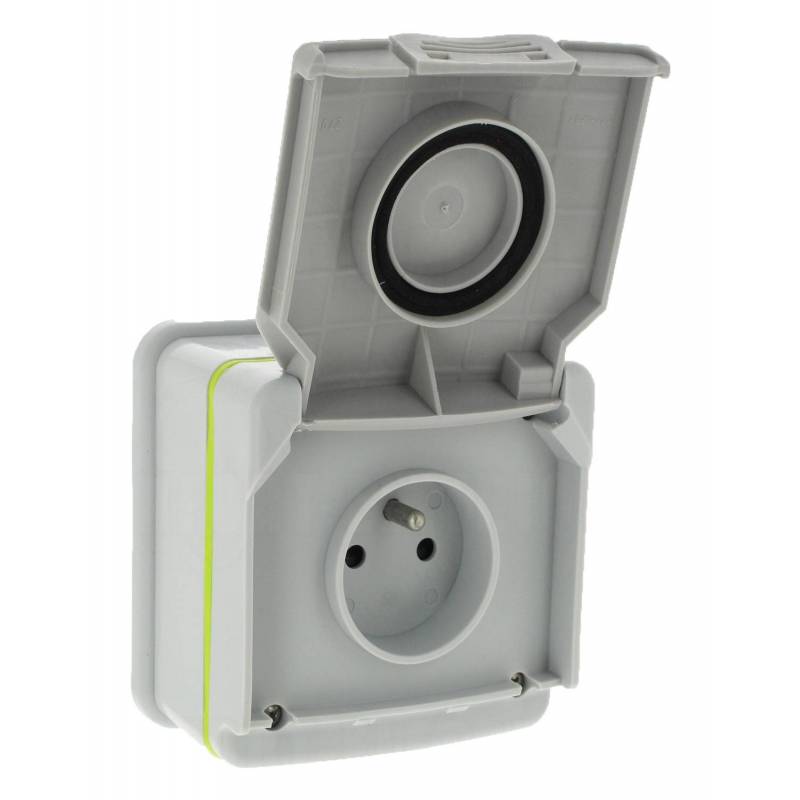

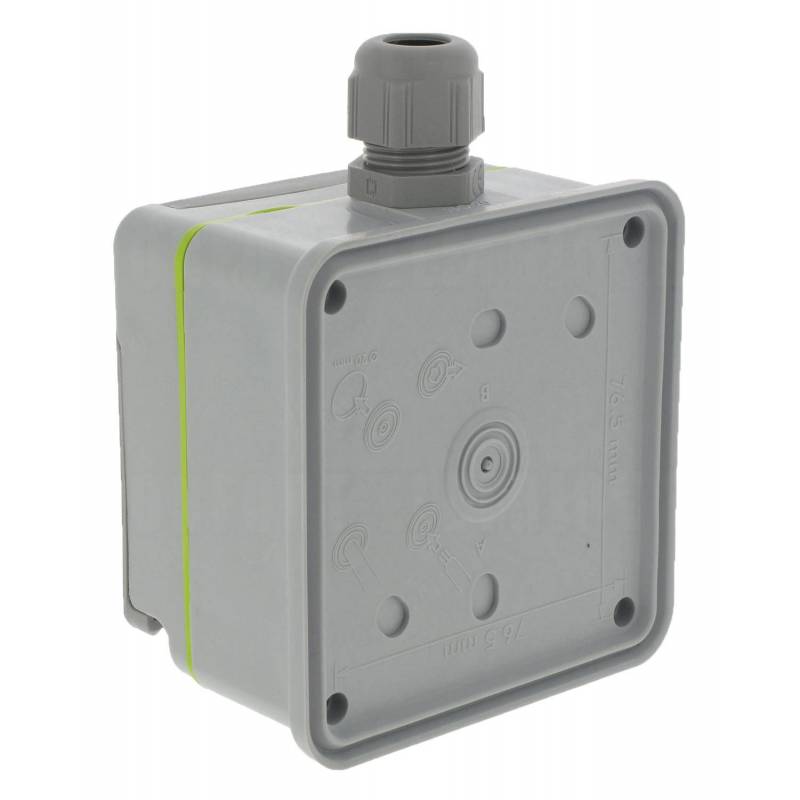

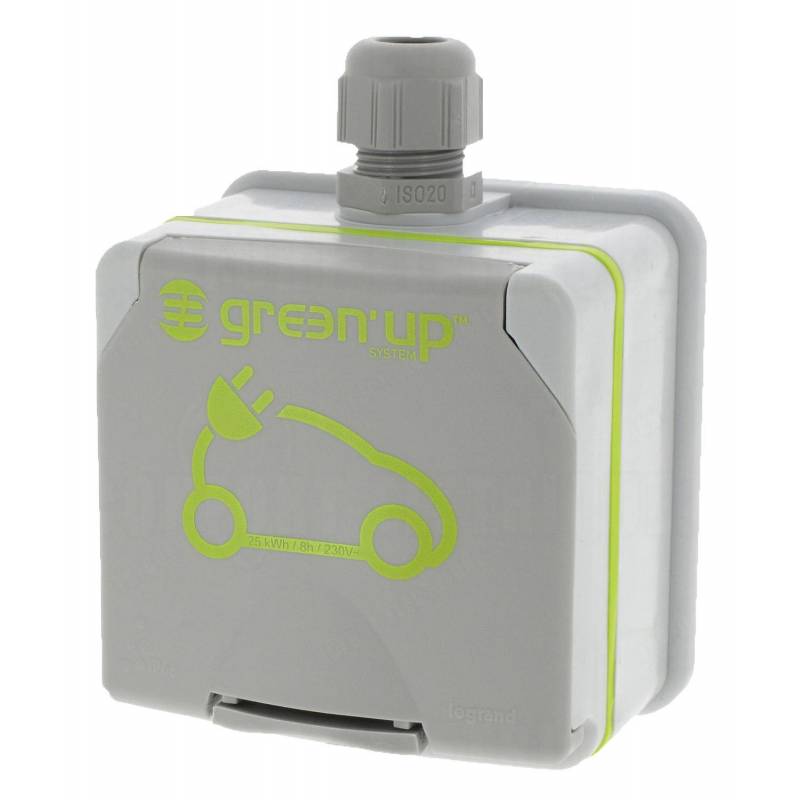

Legrand Green'up 3.2 kVA power socket mode 2 - Single phase - Screw terminal connection - IP 66 - IK 08.

  • Green'up 3.2 kVA single-phase power outlet
  • Reference number Legrand 090471

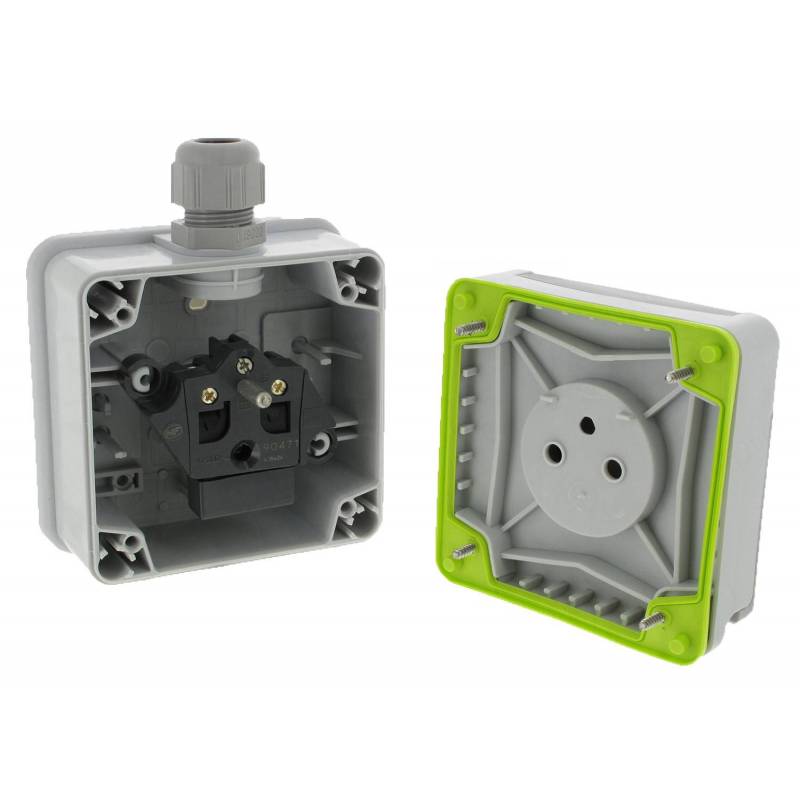

  • Screw terminal connection
  • IP 66 - IK 08
  • Delivered with instructions for installation and connection
  • Connection from the electrical panel by 1 dedicated line 3 x 2.5 mm² minimum
  • Requires protection by differential circuit breaker 20 A - curve C - 30 mA - type F (ex Hpi) ref. 410754
  • Recommended installation between 0.80 and 1.20 m from the ground
