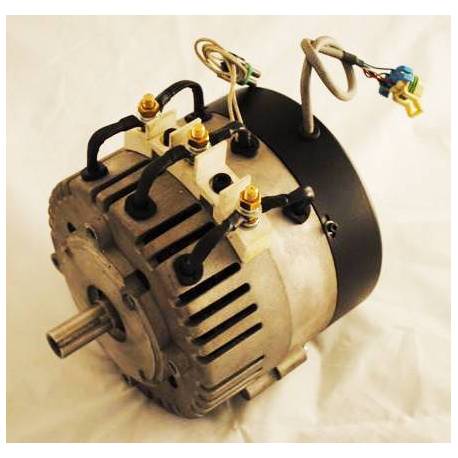

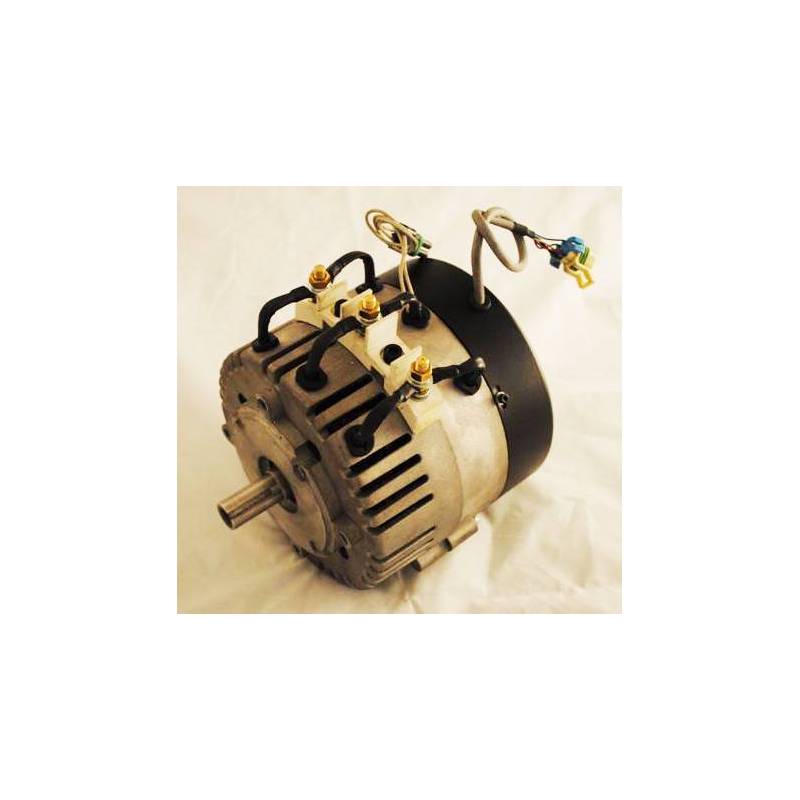

ME1012 PMSM brushless motor

Designed for long life. No brush maintenance. The motor is 92% efficient at voltages between 24 to 72 VDC. Continuous current of 125 amps AC (180 Amps DC into the motor control). This is a 3-phase, Y-connected Permanent Magnet Synchronous Motor with an axial air gap and 3 Hall sensors at 120 degrees electrical timing. It has two stators with a rotor in the center.

• Output Power of 10 KW Continuous, 24 KW Peak (at 72 volts).
• This is a 4 pole motor (8 magnets).
• The Phase to Phase winding resistance is 0.065 Ohms with 20 turns per phase.
• The maximum recommended rotor speed is 5000 RPM.
• Voltages from 0 to 72 VDC input to the control.
• Torque constant of 0.12 Nm per Amp.
• The Inductance Phase to Phase is 0.05 Milli-Henry.
• Armature Inertia is 45 Kg Cm Squared.
• Continuous current of 125 Amps AC (180 Amps DC into the motor control).
• Peak current of 420 Amps AC for 1 minute (600 Amps DC into the motor control).
• Weight of 35 pounds.
• Peak Stall Torque if 60 ft lb.
• This is an Open Frame, Fan Cooled motor.
• Includes temperature sensor.
